SUPERSCOPE Professional Portable Digital Audio Recorder PSD450mkll

This product has been discontinued as of 10-11-2021. Please contact our sales engineers for a suitable device for your application.

SUPERSCOPE's most advanced portable digital audio recorder. SUPER-easy to use.

The SUPERSCOPE PSD450mkll portable digital audio recorder is designed for the easy, flexible use and works great for the non-technical and the technical user. Highly portable and designed with security and simultaneous backup of recordings makes it a great choice anyone needing reliable recording equipment.

The PSD450mkll portable digital audio recorder is a perfect choice for transcription applications and/or recordings in fields like Law Enforcement, Business Meetings, Government, Houses of Worship, Education Institutions, and Health Care. It is a fully featured recorder with a short learning curve that makes is easy-to-use.

Key Features:

Built-in 16gb Solid State Drive (SSD)

Built-in CD Recorder, including Direct to CD Recording

Built-in USB port for direct connection of USB Flash Drive or even a USB External Hard-drive for direct recording/playback

Built in USB port for direct virtual drive connection to a PC or MAC computer

Make simultaneous to internal SSD and USB flash drive for convenience and security for backups.

SUPERSCOPE PSD450mkll Digital Audio Recorder Benefits & Features

Designed for Simplicity and Ease of Use

The top control layout is engineered for error free operation. It has a built in EZ Guide that takes you through each step of operation with step-by-step prompts on the full color screen. Record, Record with a Track/File, Play a Track/File, Import CD, Duplicate CD, Modify and Save File, Copy File to USB, Create/Record Play-list. One Touch Recording

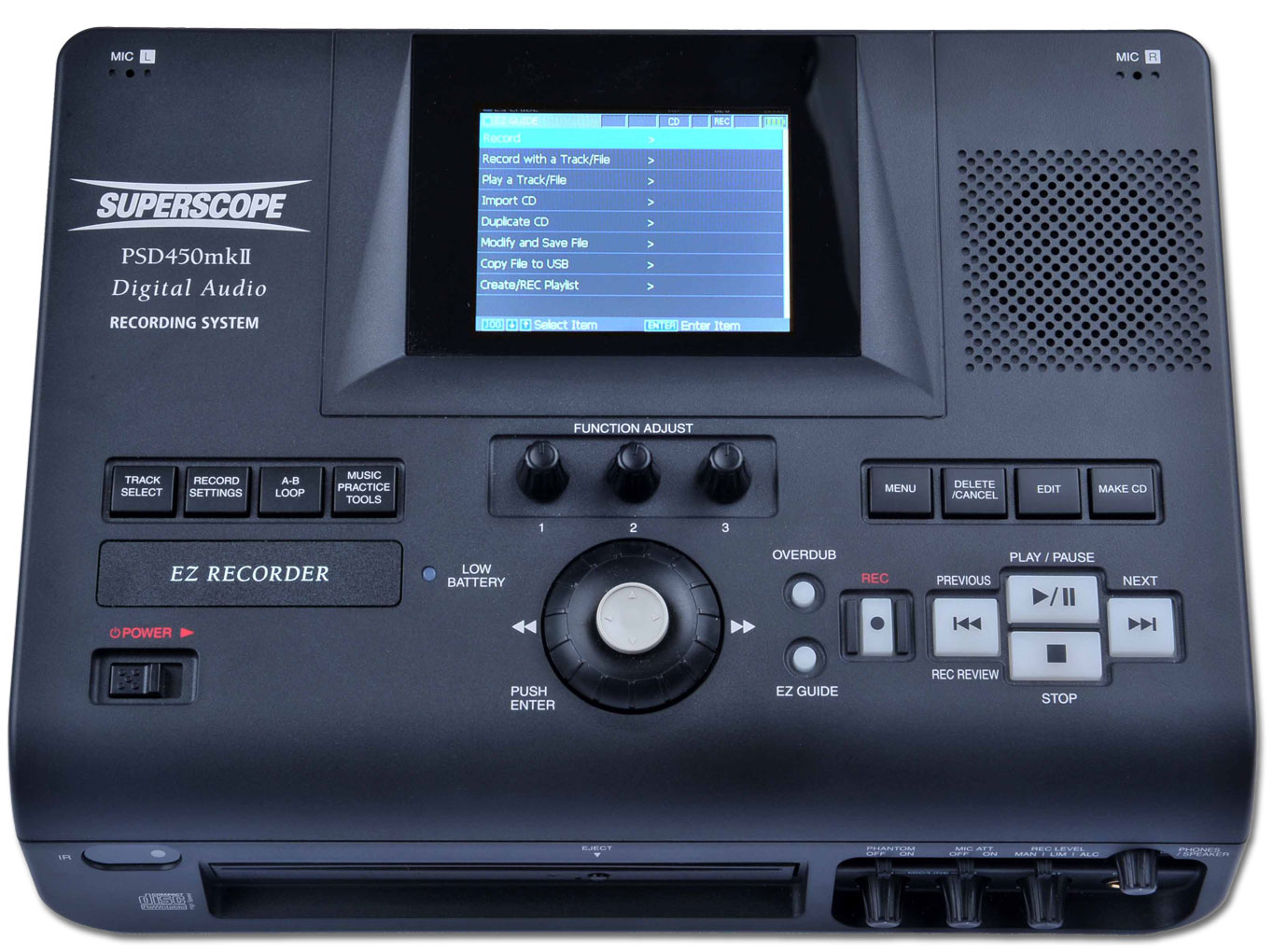

SUPERSCOPE PSD450mkll large display screen

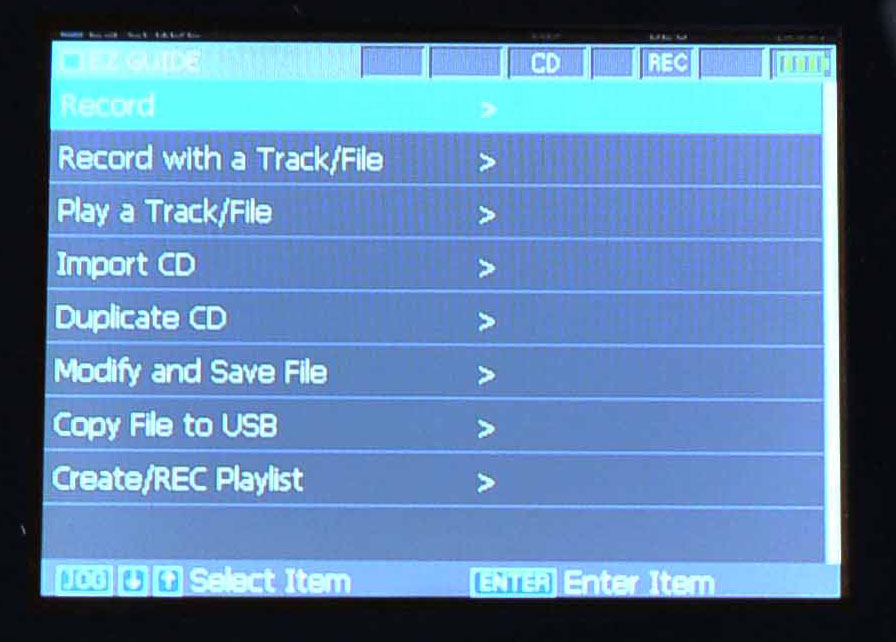

Large Color Display

The large color LCD display allows for clarity of file names and features and operations as you navigate the mkII's many functions. Color coding assists the user in identifying devices and operations during use.

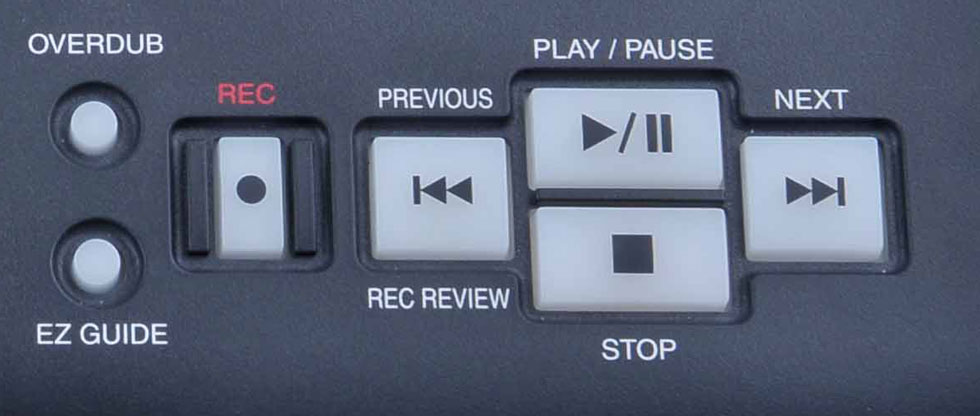

The simple error free record button on the SUPERSCOPE PSD450mkll

One Touch Recording

To save time and for ease of use, set the mkII to One Touch Record and begin recording the moment the user presses the Record key. Press Record Review and the mkII will simultaneously stop recording and start playback of your last recording for instant feedback.

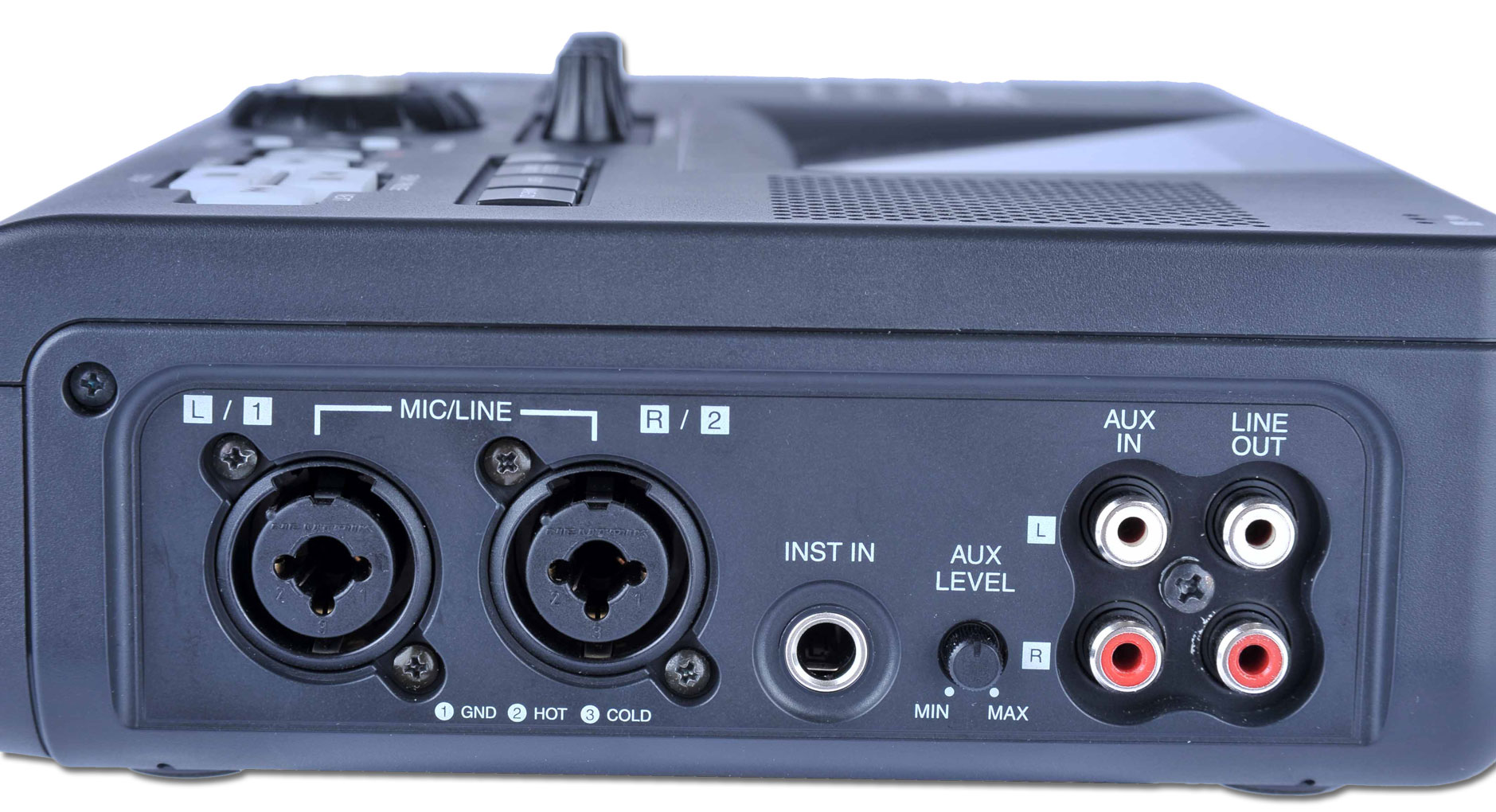

Input/Output Ports on the SUPERSCOPE PSD450mkll

Professional Input and Output

The PSD450mkll features all the inputs/outputs you will need for making portable recordings.

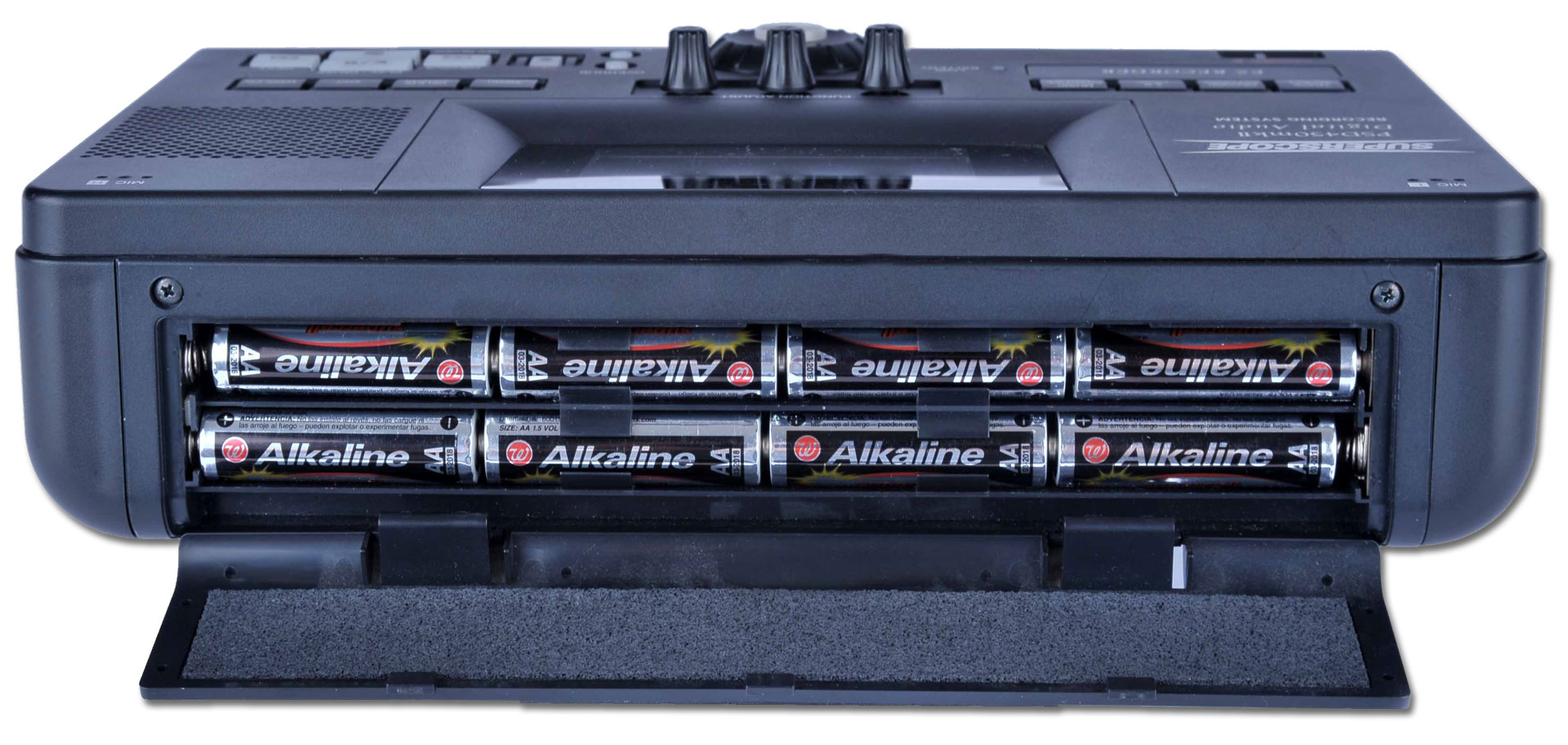

Batteries on the SUPERSCOPE PSD450mkll Digital Audio Recorder

AC and DC Powered

Never worry about a power outage because the 450mkll can be equipped with batteries to be sure you don't miss a thing.

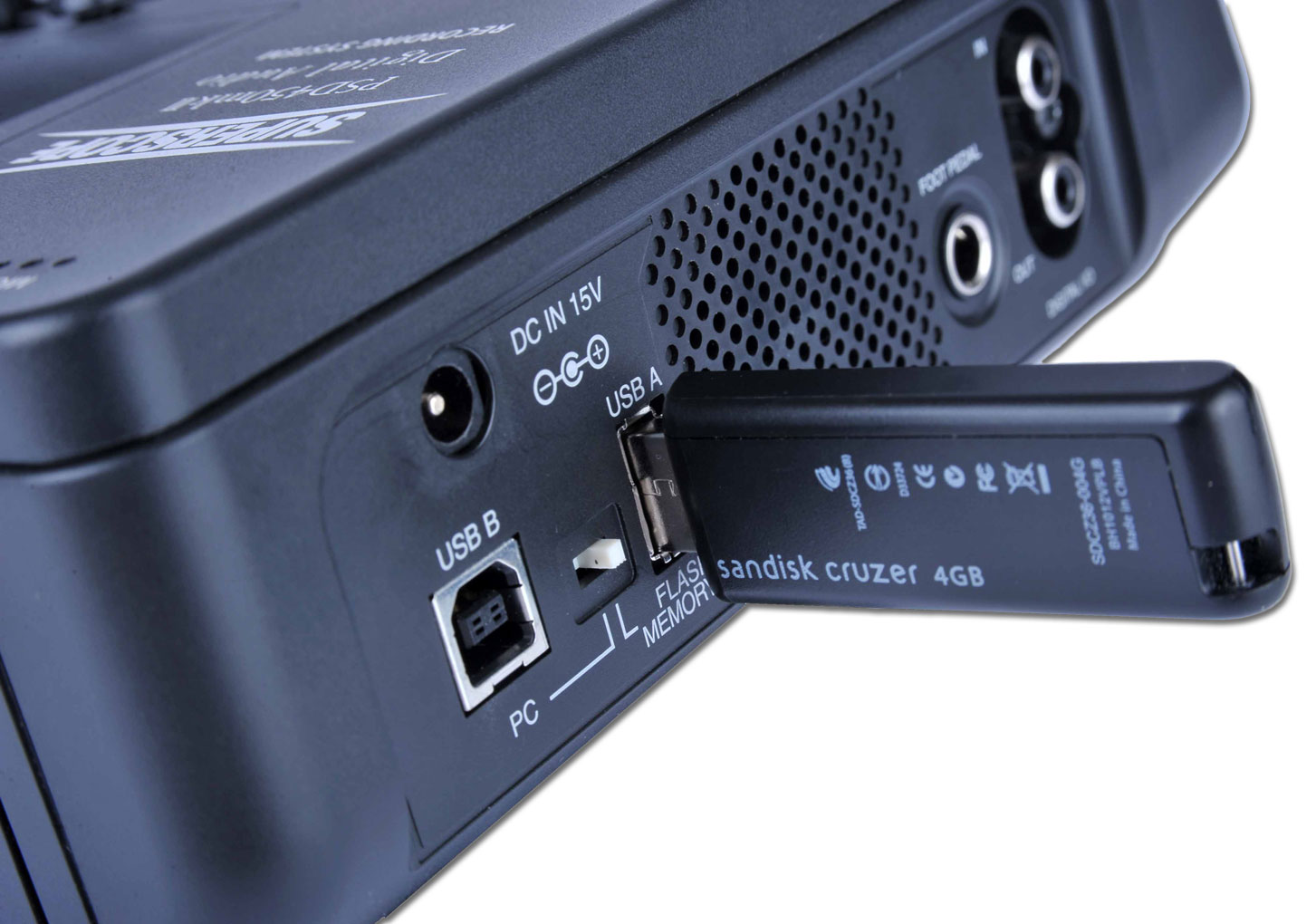

USB Ports

Built-in USB port for direct connection of USB Flash Drive or USB External Hard Drive for direct recording/playback. Built-in USB port for direct virtual drive connection to PC or MAC computer.

Superscope PSD450mkll Digital Audio Recorder

Model #77520

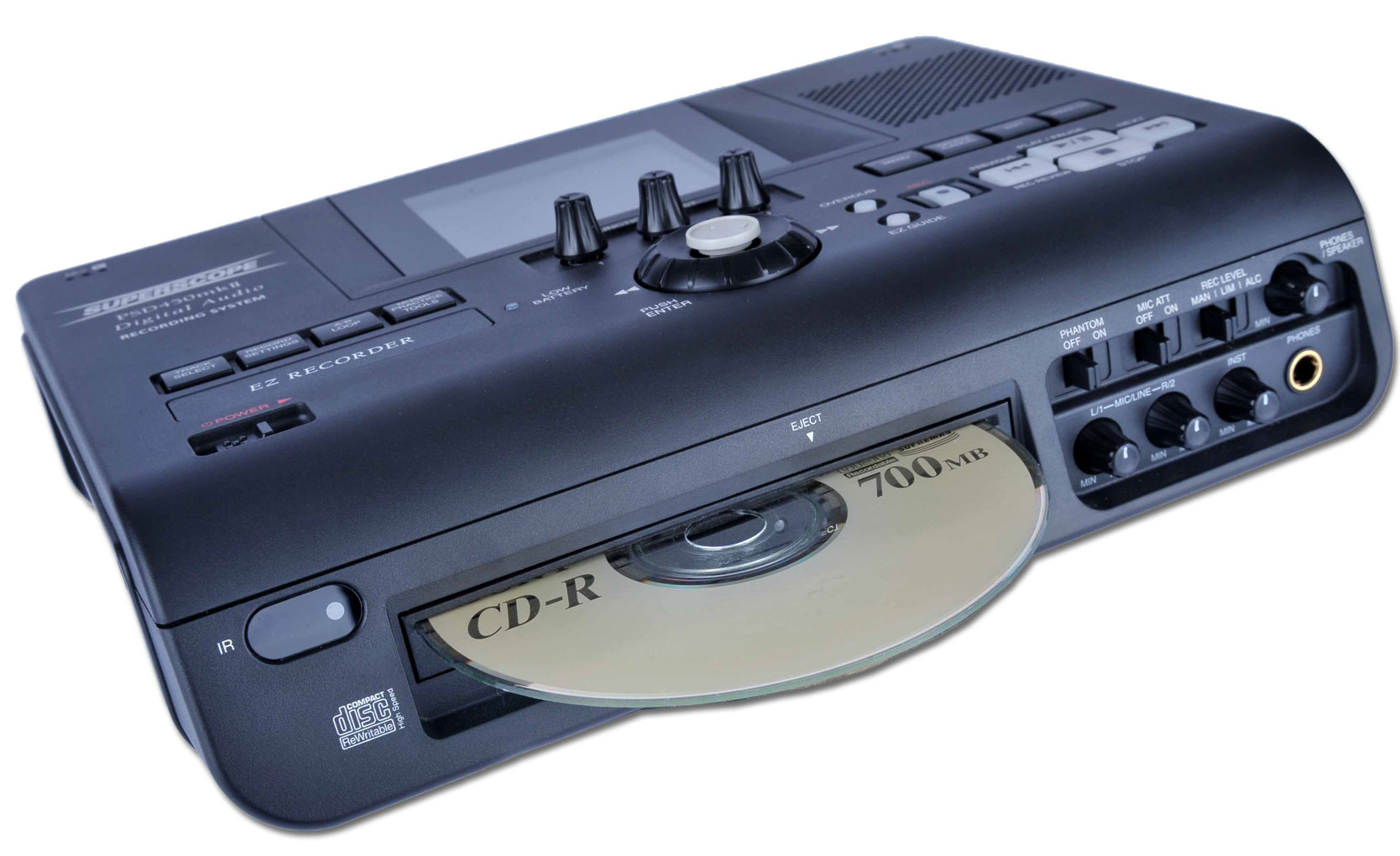

Showing angled view of the PSD450mkll Superscope Digital Audio Recorder

Discontinued Product

Call (866) 254-0714 to Get Your Custom Quote

Package Includes:

Superscope PSD450mkll Digital Recorder
AC Adapter
User Guide

PLUS:

Free UPS Ground shipping within the USA (48 states)
Exclusive HTH Engineering "Concierge" Turn-Key Tech Support and Free Unlimited Support Via GotoMeeting and/or telephone

PSD450mkll Digital Audio Recorder Technical Specifications

Number of Recording Channels	2 (stereo)
Recording/Playback Formats	WAV, MP3, CD-DA 16bit/24bit Recording Format MP3 Stereo 64 ~ 320 Kbps MP3 Mono 32 ~ 160 Kbps
A/D Conversions & D/A Conversion	24bit ϵ-D conversion
Sampling Rates	44.1KHz
Maximum Recording File Size	2GB
Display	High-resolution 3.5-inch LCD Color Display
Power Requirements	15 VDC 1.6A AC 100 - 240 V 50/60 Hz Power Supply Battery 8 X “AA” Alkaline or Ni-MH
Dimensions	10.5(W) 3.3(H) 7.8(D) in 269 (W) 81 (H) 202 (D) mm
Weight (without batteries)	4.6 lb / 2.1 Kg
Operating Temperature	5°C to 35°C/41°F to 95°F
Internal Speaker	3.5 cm x1
Internal Microphones	Electret Condenser x2
Phantom Power Supply	48 V 10mA max
USB	USB 2.0 High Speed/Mass Storage Class
Audio	Analog to Digital Converter 24 Bit Resolution Digital to Analog Converter 24 Bit Resolution Frequency Response 20 Hz to 20 KHz +/- 1 dB Line Output Level 2.2 Vrms, 300W Headphone Output Level 30m W, 32 Ω, 10% THD Speaker Output Level 2 W, 8 Ω, 10% THD Digital Output Level 0.5 Vp-p, 75 W Load
Mic Level	Input Sensitivity 1.2 mV, 12 KΩ THD 0.18% S/N 60 dB A-WTD Max. Input Level 75 mV RMS (Mic. ATT OFF), 375 mV RMS (Mic. ATT ON)
Line Level	Input Sensitivity 500 mV, 12 KΩ THD 0.01% S/N 92 dB A-WTD Max. Input Level 4.0 V
Instrument Level (High Gain)	Input Sensitivity 10 mV, 1 MΩ THD 0.03% S/N 72 dB A-WTD Max. Input Level 670 mV
Instrument Level (Low Gain)	Input Sensitivity 500 mV, 22 KΩ THD 0.01% S/N 92 dB A-WTD Max. Input Level 3500 mV
AUX Input	Input Sensitivity 500 mV, 22 KΩ THD 0.01% S/N 92 dB A-WTD Max. Input Level No Limit
